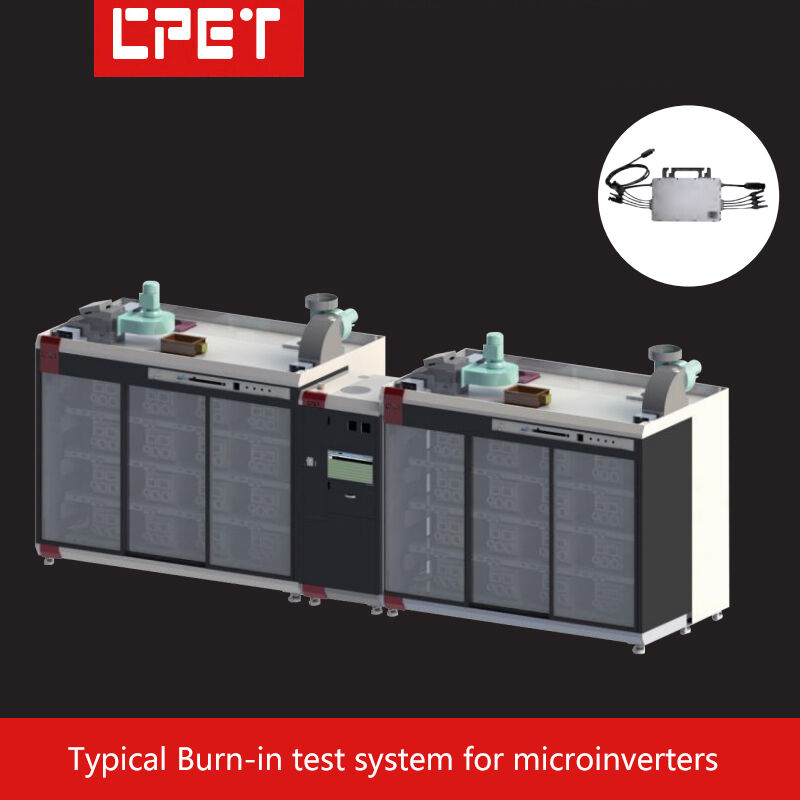

Cold Rolled Sheet Burn In Test Equipment For Microinverters

Name: Cold Rolled Sheet Burn In Test Equipment For Microinverters
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-XNY3011
Price: 88000 USD
Availability: InStock

Dettagli del prodotto

Luogo di origine: Cina

Marca: CPET

Certificazione: CE,ROHS

Numero di modello: CP-XNY3011

Termini di pagamento e di spedizione

Quantità di ordine minimo: 1

Prezzo: ¥ 88000 yuan

Imballaggi particolari: Confezione in scatola di legno

Tempi di consegna: 30 GIORNI LAVORATIVI

Termini di pagamento: T/T

Capacità di alimentazione: 30 set/mese

Ottenga il migliore prezzo

Dettagli del prodotto

Descrizione del prodotto

Dettagli del prodotto

Evidenziare:

Materiale:	Lamiera a freddo	Dimensioni complessive:	510010502050 mm
Corrente di ingresso totale:	100A	Potenza totale in ingresso:	50 kW

Materiale:	Lamiera a freddo
Dimensioni complessive:	510010502050 mm
Corrente di ingresso totale:	100A
Potenza totale in ingresso:	50 kW

Descrizione del prodotto

Performance parameters

System	System structure	1 control cabinet + 2 burn-in cabinets
	Overall size	510010502050mm
	Total floor area	5100*2000mm(Including operation area)
	Total input voltage	Three-phase five-wire system 220Vac (rated)
	Total input current	100A
	Total input power	50kW
	Application ambient temperature	0-40℃
	Application environment humidity	0-95%
	Fire protection requirements	Materials meet UL 94V0 rating
	Environmental requirements	Materials comply with Rohs, WEEE requirements
	Safety requirements	Comply with IEC62368 international standard design requirements
Burn-in cabinet	Units/Cabinet	32 bits/cabinet
	Burn-in product power	3kW/bit
	Burn-in product input voltage	10-60Vdc/bit
	Burn-in product input current	50A/bit
	Burn-in Product Load Category	2.6kW/bit
	Burn-in product output voltage	380/220Vac/50Hz (rated)
	Burn-in product output current	16A/bit
	AC Connector Type	Aviation plug (L1/L2/ L3/N/PE)
	DC Connector Type	MC4 photovoltaic connector (PV+/PV-/4 groups)
	Signal Connector Type	RJ45 (network port)
	Bit Status Indicator	No
	Input power	105kW
	Feedback power	80kW
	Constant temperature range	Room temperature+5°C-60°C
	Open type	Sliding door/folding door/side door
	Volume size	210010502050mm
	Dimensions in the product area	17004501500mm
Monitoring software	Display running information	Input voltage, current, power, output voltage (DC source module communication or product communication)
	Show status information	Not Connected / Vacant / Passed / Under Voltage / Under Current / Over Voltage / Over Current / No Output / Protection
	Display accuracy	±(1%+0.2%FS)
	Control precision	±(1%+0.2%FS)
	Bad way of reporting	Audible alarm
	Report format	CSV format
	Statistics	Yield/CPK/Time Distribution
	MES docking	Support
	Scan speed	5S
Control cabinet	Control system	Window 10
	Display medium	Computers and Monitors
	Manipulating medium	Mouse and keyboard
	Communication method	Cable
	Type of protection	Over current, leakage, over temperature, smoke, emergency stop
	Alarm method	Sound and light alarm, remote network
	Heat dissipation type	Air cooling
	Maintenance mode	Post maintenance
	Material	cold rolled sheet
	Volume size	8808601900mm
